This over all length 45 meters, steel constructed, passenger day cruise boat with improved geometrical characteristics, optimized hull and corresponded tank test results, will give less resistance, high cruising performance and seaworthy.
The vessel is longitudinally framed for maximum strength and less deformation on steel construction.
Passenger Capacity 350 pax
CLASS : Turkish Lloyd
Principal Dimensions
Length Overall : 45 m
Length Waterline : 43.95 m
Beam : 9.00 m
Draft : 2.45 m
Displacement : 375 tons
First Deck : Reception + Shop (12m2 Air Conditioned) + 4 WC for men + 4 WC for women + Restaurant 185m2 (Air Conditioned) table and seats for 150pax + Dish washing room + Office
Second deck : Bar and seating around for 60pax + 16m2 Air Conditioned play card room + 1 x 15m2 Play stations Rooms (Air Conditioned) + 1x 15m2 office room (Air Conditioned) +

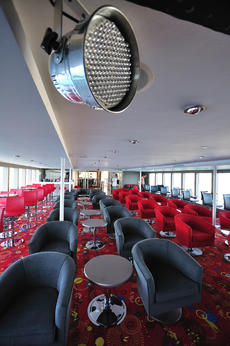

Entertainment saloon 150m2 for 110pax (Air Conditioned) + Bar, Dancing pist + front deck
Sun deck : Appr. 275m2 for 250pax in Cocktail Style + Portable Seats 100pax + Bar + Snack Bar + Shower/WC + 12m2 Air Conditioned Massage Room + 2 Cabins for Captains + Wheel Room
Construction
Hull and Super Structure Construction Marine Steel
All decks are wood laminated
All Saloons are with Carpet
Tanks
Fuel Capacity : 12000 liters
Fresh Water Capacity : 11500 liters
Grey Water Capacity : 6000 liters
Black Water Capacity : 6000 liters
New lube oil storage : 300 liters
Used lube oil storage : 1000 liters
Bilge water tank : 1000 liters.
Machinery
Main Engines (diesels) total 2800 HP
2 x 800 HP @2100 RPM Daewoo V222 TIM
1 X 1200 HP @2300 RPM Daewoo 4V222TIL
Gen Sets (Diesels)
2 x 175kW Deawoo AD136TI (24,220 and 380 volt)
220/415 v 50Hz, 3 phase
Bow Thruster : 1 X 240 HP Yanmar Trac 28”
Stabilizer : TRAC 370 4 fin 0 speed
Fuel separator : ALFA LEVAL MIB303
Waste water thretment : SELMAR
Watermaker
Fresh air and Aircondition
Springler, fire and smoke detection system
Gas alarm and CO2 system
Hand held extinguishers
Speed
Maximum speed : 15 knots
Service speed : 13 knots
Against the Solas and Turkish Lloyd regulations all necessary electronic and safety equipment, Sart-epirp-nawtex-VHF (2)-HandVHF(3)-AirVHF-Autopilot-Radar-Chart plotter-Wireless internet-
12 Solas Life-rafts
Passenger and Child life jackets
Rescue Boat with 50 HP outboard engine, davits
(Camera- Music-Anhoncment- TV) Systems – Equipment for meetings (projector-screen music and sound system)
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
